Solar Energy

25 years Linear Warranty

10 years of product defects in materials & workmanship
10 years for 90% of warranted minimum power output
25 years for 80% of warranted minimum power output

EFFECTIVE AND LONG TERM RELIABLE

Space is very limited on a boat, so for a given output, the solar panel must take as little space as possible. From the Carib Marine available technologies, mono-crystalline silicon outperforms multi-crystalline, thin film and amorphous silicon. Mono-crystalline solar panels give the most output for the least space.

Key Features

Industry leading module power output warranty.
5 busbar cell design improves module efficiency and offers better aesthetic appearance for rooftop installation.
International quality, safety and performance certifications.
Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).
0~5w power is set to ensure maximum power output for customer.
Solar modules go through 4 quality tests to ensure good performance.
Beautiful appearance, good durability & easy installation.
Advanced glass and cell surface textured design ensure excellent performance in low-light environment.

100 watt Panel

Solar panels from Carib Marine are a reliable way of producing power. Long term reliability comes from high quality materials assembled into strong anodized aluminum frames under conditions of strict quality control. After 25 years of use a solar panel should still be producing a large proportion of its original output.

Model	CRB/SF-6M100
Tolerance	0~5W
Max System Voltage	DC1000W
Max Power (W)	100w
Max Power Voltage (Vmp)	18.27V
Max Power Current (Imp)	5.91V
Open Circuit Voltage (Voc)	22.03V
Short Circuit Current (Isc)	5.91A
Weight	8Kgs
Module Application	Class A
Size L/S/T	1200x540x35mm
St Maarten List Price*	$106.60

180 watt Panel

Model	CRB/SF-6M180
Tolerance	0~5W
Max System Voltage	DC1000W
Max Power (W)	180W
Max Power Voltage (Vmp)	18.30V
Max Power Current (Imp)	9.84V
Open Circuit Voltage (Voc)	22.04V
Short Circuit Current (Isc)	10.62A
Weight	12Kgs
Module Application	Class A
Size L/S/T	1480x680x35mm
St Maarten List Price*	$140.00

310 watt Panel

Model	CRB/SF-6M310
Tolerance	0~5W
Max System Voltage	DC1000W
Max Power (W)	310W
Max Power Voltage (Vmp)	33.00V
Max Power Current (Imp)	9.4V
Open Circuit Voltage (Voc)	40.50V
Short Circuit Current (Isc)	9.92A
Weight	18Kgs
Module Application	Class A
Size L/S/T	1640x992x35mm
St Maarten List Price*	$232.50

370 watt Panel

Model	CRB/SF-MD3/120-370
Tolerance	0~5W
Max System Voltage	DC1500W
Max Power (W)	370W
Max Power Voltage (Vmp)	34.10V
Max Power Current (Imp)	10.86V
Open Circuit Voltage (Voc)	41.30V
Short Circuit Current (Isc)	11.37A
Weight	19.5Kgs
Module Application	Class A
Size L/S/T	1776x1052x35mm
St Maarten List Price*	$302.40

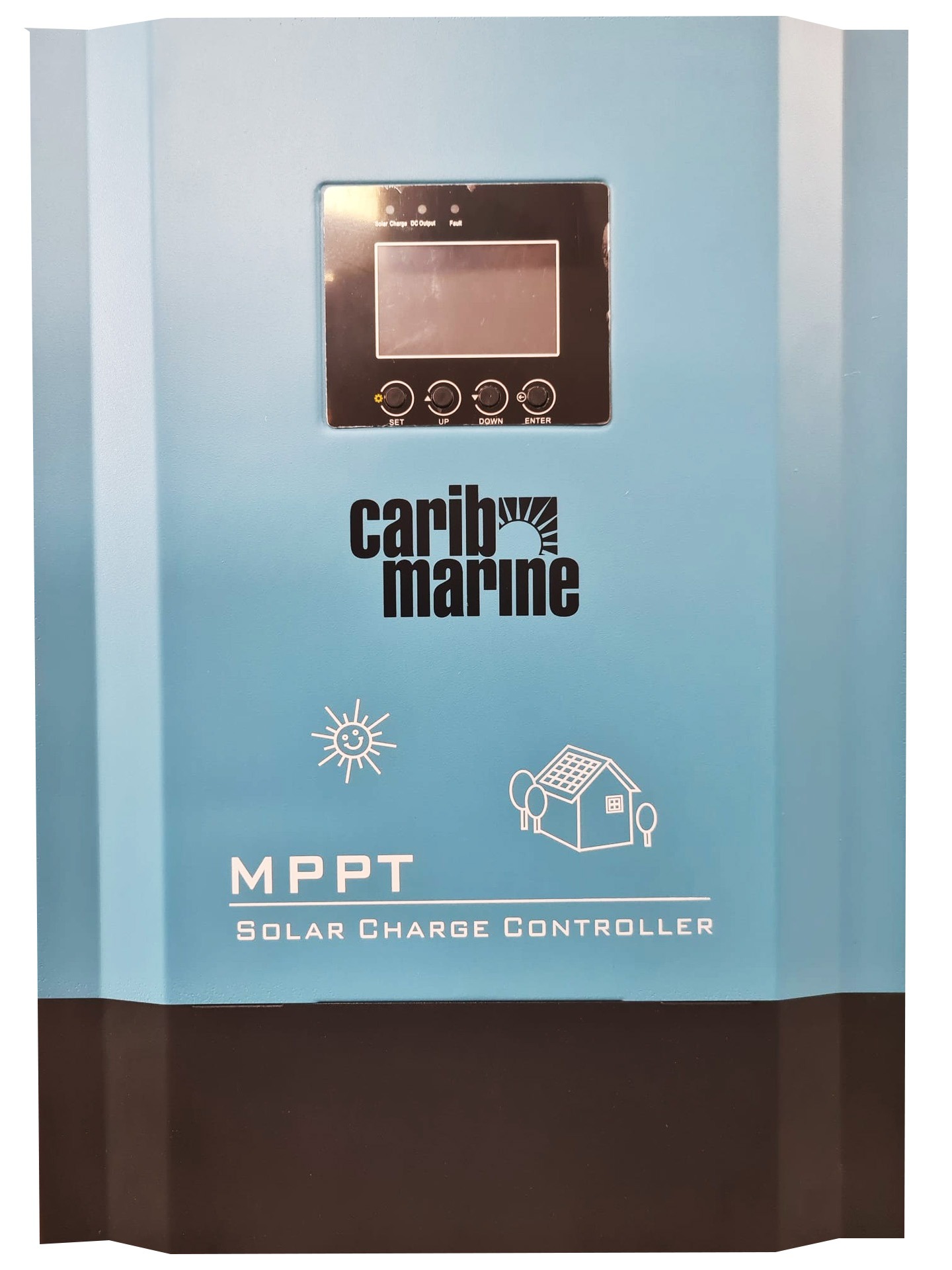

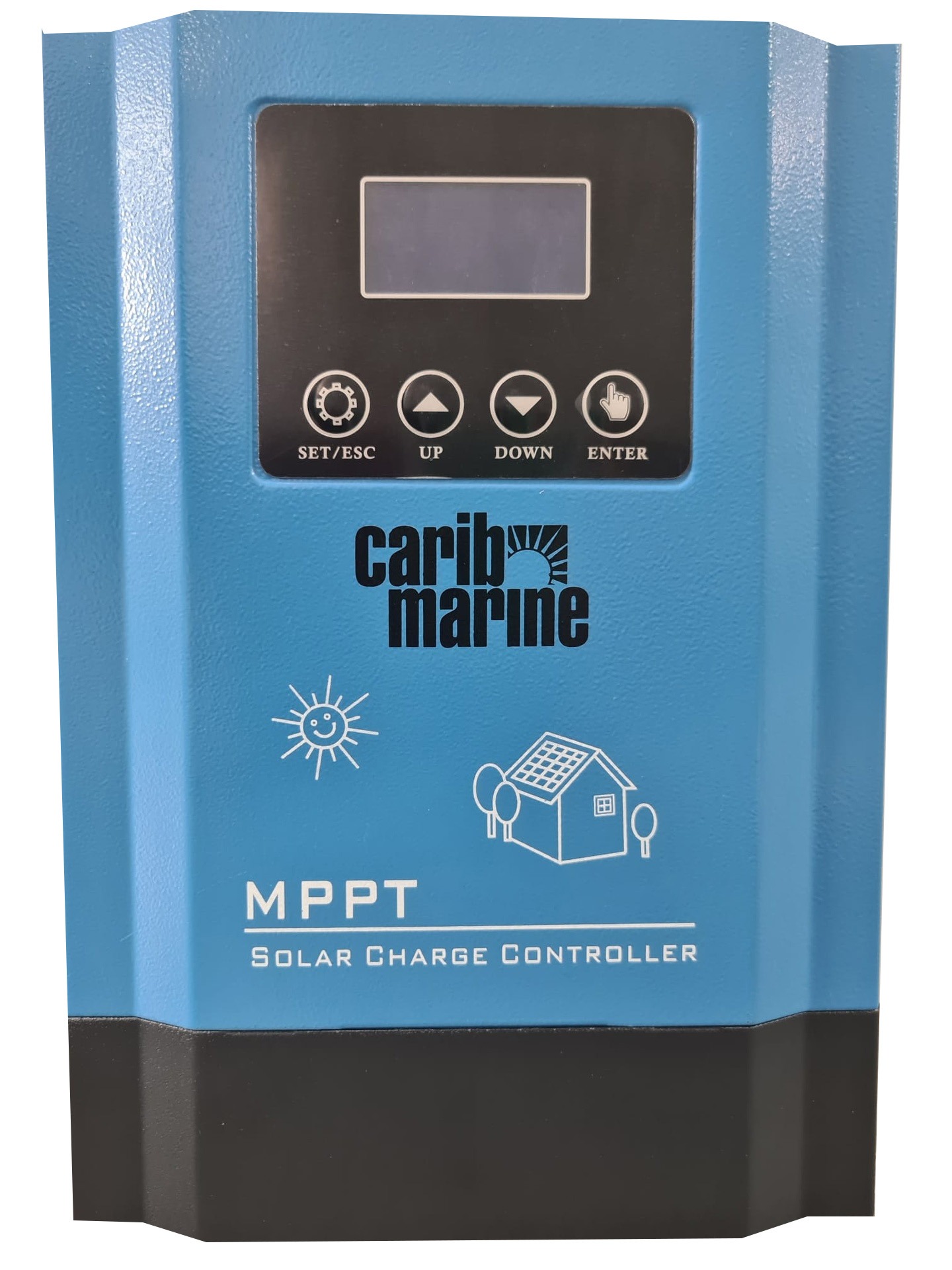

Controller M30A

Model	CRB/SF-M30A-1
Tolerance	Solar Controller, MPPT 12/24/48V 30A
St Maarten List Price*	$195.85

Controller M30A

Model	CRB/SF-P30A
Tolerance	Solar Controller, PWM 30A 12/24V
St Maarten List Price*	$34.75

Connector MC4

Model	CRB/SF-PV004-T2
Tolerance	Solar Connector MC4, Set for 4mm cable
St Maarten List Price**	$8.50

** The “St.Maarten List” price is based on the sticker price in St.Maarten. Due to local taxes and duties, prices in our various locations may differ from the catalog price, and we can explain the differences to you. All locations within the Budget Marine Group are committed to giving you the best possible price. Yachts In Transit, Export Customers and Non Residents that provide proof of this status can apply for St.Maarten Offshore pricing.
